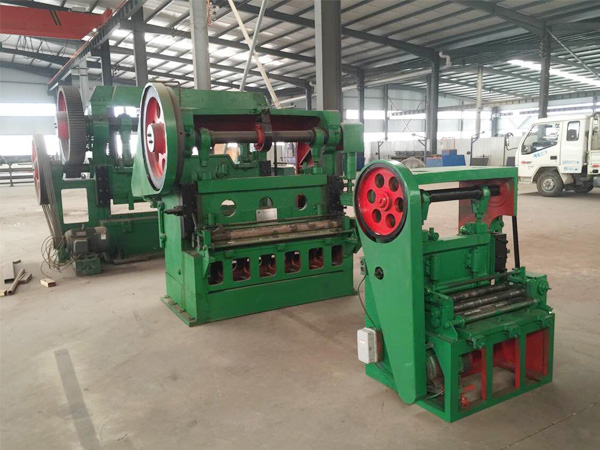

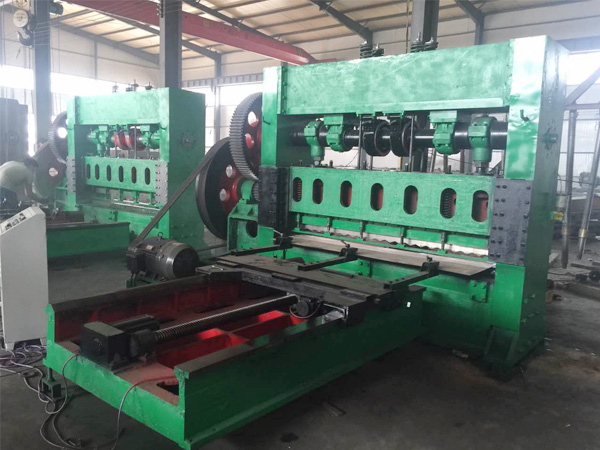

expanded wire mesh machine
|
Type
|
JLG6.3T
|
JLG16T
|
JLG25T
|
JLG63T
|
JLG125T
|
|
Punching
sheet thickness
|
≤1.0mm
|
≤1.3mm
|
≤1.5mm
|
≤3mm
|
≤6mm
|
|
Punching sheet width
|
≤600mm
|
≤1000mm
|
≤1250mm
|
≤2000mm
|
≤2000mm
|
|
Times of Sliding
|
250r/min
|
150r/min
|
150r/min
|
70r/min
|
45r/min
|
|
Material distance
|
0.1-0.3mm
|
0-10mm
|
0-12mm
|
0-3mm
|
3.5-7.0mm
|
|
Sliding distance
|
30mm
|
30mm
|
40mm
|
60mm
|
80mm
|
|
Cut the stencil
plate continuously
per hour
|
1.6-13m
|
2.7-5.4m
|
3-6m
|
2.1-12.6m
|
4.2-8.4m
|
|
Power
|
2.2kw
|
3kw
|
4kw
|
11kw
|
22kw
|
|
Outside
Dimension(mm)
|
1090x710x1450
|
1740x1400x1870
|
1740x1400x1870
|
3560x3300x2280
|
5940x3270x1925
|
|
Complete
machine weight
|
1.2T
|
2.4T
|
3T
|
11T
|
12.5T
|
|
Opening mesh
|
≤25mm
|
≤50mm
|
≤150mm
|
≤200mm
|
≤200mm
|
